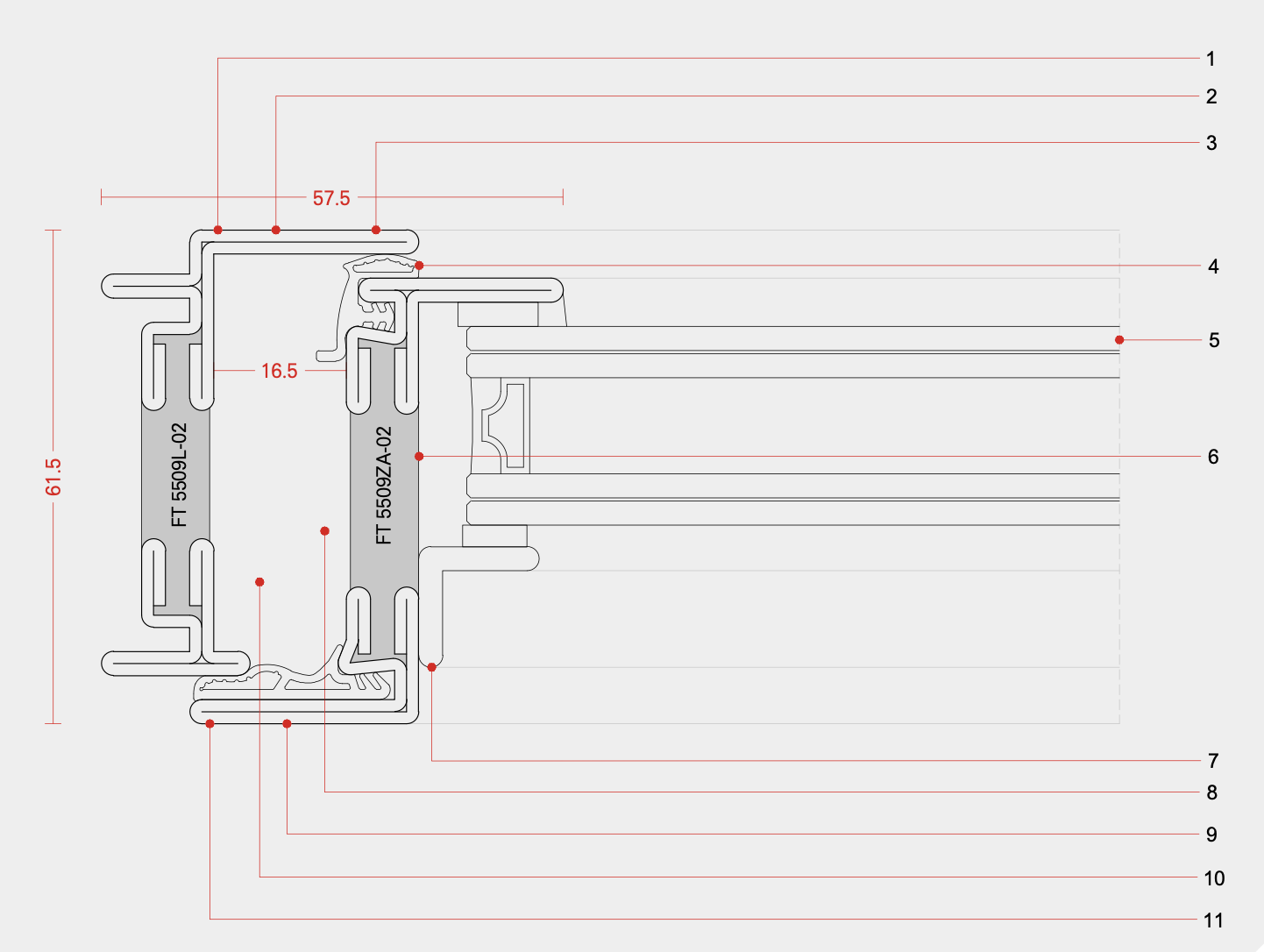

Profile drawing
W50 TB
1. galvanized steel 1,5 mm thick, cold formed in high precision production lines
2. profile sightlines and section design identical to the series FerroFinestra W40
3. both internal and external overlapping sightline
4. mechanically fixed rebate gaskets
5. profile depth compatible with insulating glass up to 38 mm
6. high density cast in polyurethane isolator
7. wide choice of different glazing beads
8. wide range of exclusive fittings, both contemporary and reproduced from original designs of the modern era
9. compatible with 16 mm friction hinges
10. side-hung, top-hung and bottom-hung windows, pivoting windows, sliding and folding doors
11. surface finishes in any customized or RAL colours, for a great planning freedom
W50 TB
